Integrated 1 Hz Stabilized Laser Systems: SLS-INT-1550-200-1

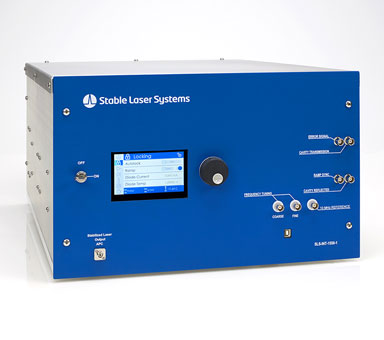

Accelerate your research without sacrificing linewidth or stability using this fully integrated laser source in a rack-mountable package.
Designed to be plug-and-play, it offers the same 1 Hz linewidth and stability as our breadboard systems, controlled via push-button auto-locking right out of the box. An on-board ion pump maintains vacuum during shipment and relocation to minimize setup time, while an easy to read front panel provides control and ongoing system diagnostics.
Achieve stable 1 Hz linewidths within hours of delivery
Performance & Specs
| Operating Wavelengths | 1530-1565 nm | Designed around your laser or preferred wavelength |
| Output Power | 10 mW, 100 mW | 20-100 mW optional |

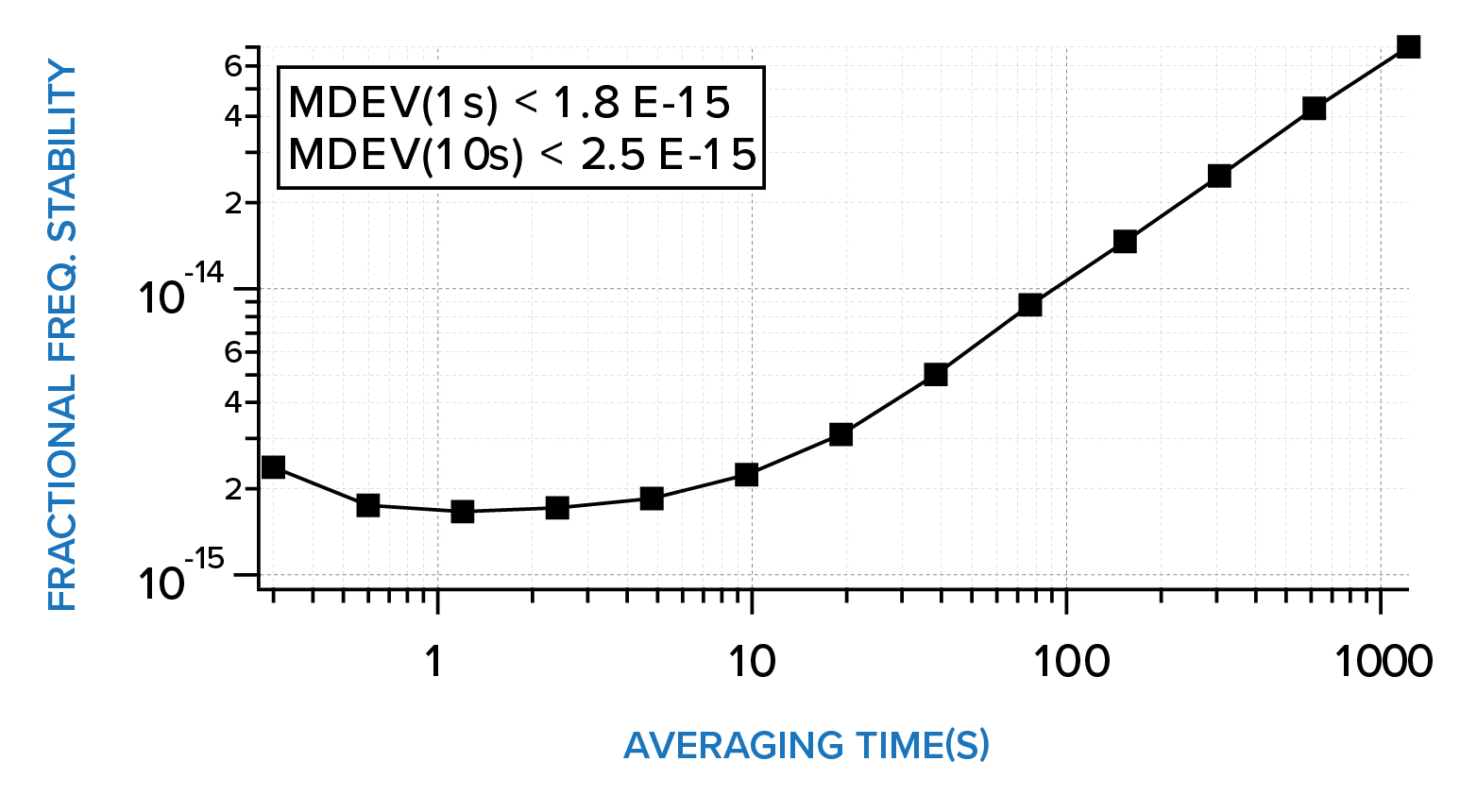

| Stabilized Laser Linewidth | < 1 Hz, often better in practice, σy < 3×10 -15 @ 1 s |
Measured over 1 s, heterodyne beat |
| Daily Laser Drift | < 20 kHz | @1550 nm, 18 – 25 °C operating temperature |
| Power Consumption | < 80 W | Vacuum survival with no wallplug power > 7 days |
| Dimensions | 11 U total height including vibration isolation | 45 x 47 x 62 cm |
| Weight | < 80 kg | Additional vibration isolation option, < 50 kg |
Features
- Turn-key, front panel interface to monitor and control locking
- Portable: remains aligned and under vacuum during transportation
- Standard wavelengths from 1530-1565 nm
- Includes a vibration isolation stage
- Arrives ready to operate, fully tested and characterized
- Optional offset locking with in situ drift cancelation
Applications
- Optical frequency comb tooth locking
- RF generation for stable time-keeping to the 15th decimal place
- Local oscillator for time or frequency transfer
Monitor Outputs
- Vacuum pressure, cavity temperature, laser current, and temperature monitored on front panel touchscreen
- Output BNCs monitor the error signal, reflected power level, and transmitted power levels
- Gain settings for loop filter displayed and adjustable through the touchscreen
