Choosing a Cavity

There is no single cavity design that is clearly superior to all others. The choice of cavity design and materials, instead, depends upon the application. We’ve worked with the leading labs in the world to provide frequency stabilization solutions for a broad range of applications, and can advise on a customized solution for your needs. Factors to consider in choosing the best cavity design for your application include:

  • Linewidth required
  • Free spectral range (FSR) needed
  • Operating environment (temperature & amount of vibration)
  • Stability required, both short and long term – degree of tolerable drift

On the whole, all systems for narrow linewidths use a vibration isolation stage, and the thermal noise floor of the cavity can be reached with any geometry (including cylindrical). If the value of that noise floor is important, then a notched cavity, being longest, has the lowest thermal noise floor (assuming a good choice of mirrors for large beam spot size).

Standard Reference Cavity Selection Guide

CAVITY TYPE

FSR (GHz)

 APPLICATIONS & PERFORMANCE
Cylinder Cavity
100 mm long, 50 mm diameter

1.5
  • A workhorse for laser stabilization in atomic physics
  • For locked linewidths > 50 Hz
Notched cavity
100 mm long, 100 mm diameter

1.5
  • For the lowest acceleration sensitivity
  • Thermal noise limited
  • Allan Deviation is ~ 1— 10-15
  • Acceleration sensitivity is < 5×10-11/g
Cube cavity

3
  • Use where a rigidly held cavity is important
  • Can be conveniently fiber coupled, and is easily portable
  • Acceleration sensitivity is ~2×10-10/g
Cube cavity
25 mm

6
  • Use where compact size is of utmost importance
  • Can be conveniently fiber coupled.
  • Acceleration sensitivity is ~2×10-10/g
200 mm & 300 mm long 750 MHz/ 500 MHz
  • SLS has standard designs for these cavities. Please contact us to discuss further.

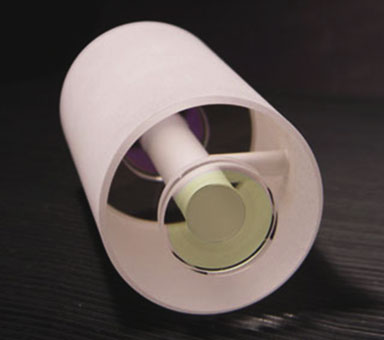

Cylindrical Cavities

Cylindrical cavities feature a tried-and-true geometry for spectroscopy, offering locked laser linewidths at the 10 Hz level. They are the most common cavity design, but other cavity designs offer distinct advantages for some applications.

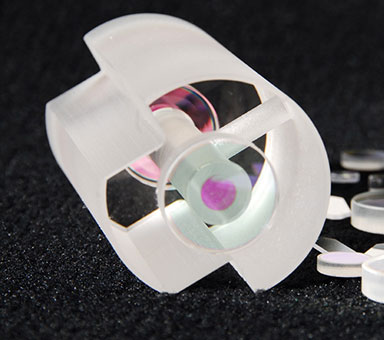

Notched Cavities

Notched cavities offer reduced acceleration sensitivity as compared to a cylindrical design. Long spacer lengths, from 100 mm up to 300 mm, yield the lowest thermal noise floor and narrowest laser linewidths. We recommend a notched cavity geometry when Hz-level linewidths and low frequency drift are paramount.

Cubic Cavities

Cube cavities are the most compact cavity designs, while still delivering narrow linewidth performance. These rigidly-held spacers can be moved without need for realignment.

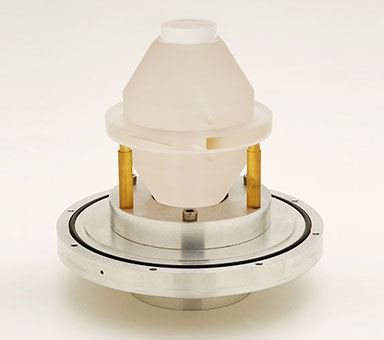

Midplane Cavities

The careful design and mounting of midplane cavities means low vibration sensitivity in the vertical dimension. These cavities can be relocated while preserving alignment.

Applications Served

  • Atomic clocks (e.g., Yb, Sr, Yb+, Sr+, Hg+, Ca, Ca+)
  • Atomic laser cooling and trapping, including dynamic frequency variation
  • High-precision spectroscopy
  • Optical frequency comb tooth locking
  • RF generation for stable time-keeping to the 15th decimal place
  • Local oscillators for time or frequency transfer
  • Microwave generation
  • Laser radar (long coherence time lasers)
  • Fiber sensing
  • Detection and sensing of optical fiber perturbations
  • Time transfer over optical fiber
  • Precision laser wavelength tuning
  • Optical frequency sweep generation or shifting for cavity drift cancelation
